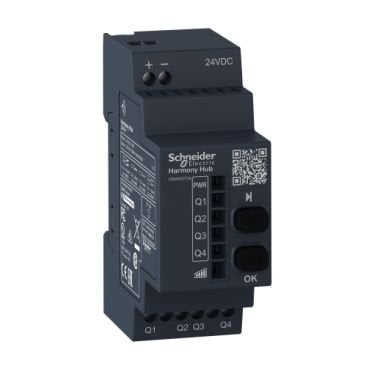

Telemecanique Sensors XZBWR2STT24 4 PNP Çıkışlı (200 mA) Monostable Programlanabilir Alıcı
%52
indirim
11.781,99 TL
5.655,35 TL
KDV Dahil
2.034,98 TL den başlayan taksitlerle!
Function of module
Receiver unit for remote sensor
Maximum number of transceivers
ZigBee: <2
Nominal output current
0.8 A at 24 V DC
Output type
Transistor PNP
Output contacts
4 PNP
Time delay range
0.5 s (tolerance: - 15...15 %)
Starting time
<= 400 ms
Maximum switching current
200 mA DC
Minimum switching current
10 mA
[Us] rated supply voltage
24 V DC - 15...20 %
Maximum voltage drop
<2 V (nominal output current: 200 mA)
Communication port protocol
Zigbee green power at 2.4 GHz
Maximum sensing distance
100 m in free field
25 m in a metal enclosure
25 m in a metal enclosure
Response time
< 30 ms after sensor change
Number of channels
2 per receiver
Utilisation category
DC-13 conforming to EN/IEC 60947-5-1
Maximum power consumption in W
26 W DC
Breaking capacity
4.8 W (per output)
Short-circuit protection
1 A fuse type fast blow
Operating position
Any position without derating
Electrical connection
1 conductor cable 0.14…2.5 mm² AWG 26...AWG 14 solid without cable end conforming to IEC 60947-1
2 conductors cable 0.14…1.5 mm² AWG 26...AWG 16 solid without cable end conforming to IEC 60947-1
1 conductor cable 0.14…4 mm² AWG 26...AWG 12 flexible with cable end conforming to IEC 60947-1
2 conductors cable 0.14…1.5 mm² AWG 26...AWG 16 flexible with cable end conforming to IEC 60947-1
2 conductors cable 0.14…1.5 mm² AWG 26...AWG 16 solid without cable end conforming to IEC 60947-1
1 conductor cable 0.14…4 mm² AWG 26...AWG 12 flexible with cable end conforming to IEC 60947-1
2 conductors cable 0.14…1.5 mm² AWG 26...AWG 16 flexible with cable end conforming to IEC 60947-1
Tightening torque
0.5…1 N.m conforming to EN/IEC 60947-1
Housing material
Self-extinguishing plastic
Status LED
1 LED green for power ON
1 LED green and yellow for reception signal
4 LEDs green for output active
1 LED green and yellow for reception signal
4 LEDs green for output active
Mounting support
35 mm symmetrical DIN rail conforming to EN/IEC 60715
Mounting plate
Mounting plate
Rated short-duration power frequency withstand voltage
1 kV 50 Hz conforming to EN/IEC 60947-5-1
[Uimp] rated impulse withstand voltage
0.8 kV
Width
36 mm
Height
108 mm
Depth
75 mm
Net weight
0.13 kg
Marking
