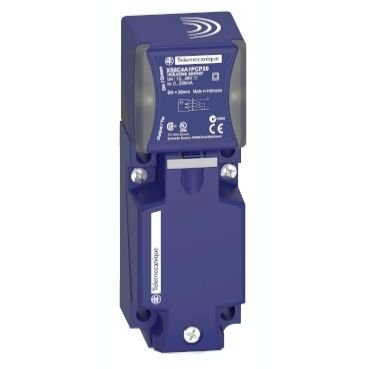

Telemecanique Sensors XS9C4A2A1G13 Kübik Format
%52
indirim
8.707,97 TL
4.179,82 TL
KDV Dahil
1.504,04 TL den başlayan taksitlerle!
Range of product
Telemecanique Inductive proximity sensors XS
Series name
General purpose
Sensor type
Inductive proximity sensor
Device application
-
Sensor name
XS9
Sensor design
Form 40 x 40 x 117
Size
117 mm
Body type
Fixed
Detector flush mounting acceptance
Non flush mountable
Material
Plastic
Enclosure material
PBT
Type of output signal
Analogue
Wiring technique
3-wire
[Sn] nominal sensing distance
25 mm
Output circuit type
DC
Analogue output range
0...10 V
Electrical connection
Screw-clamp terminals, 4 x 1.5 mm²
[Us] rated supply voltage
24 V DC with reverse polarity protection
IP degree of protection
IP67 conforming to IEC 60529
IP65 conforming to IEC 60529
IP69K conforming to DIN 40050
IP65 conforming to IEC 60529
IP69K conforming to DIN 40050
