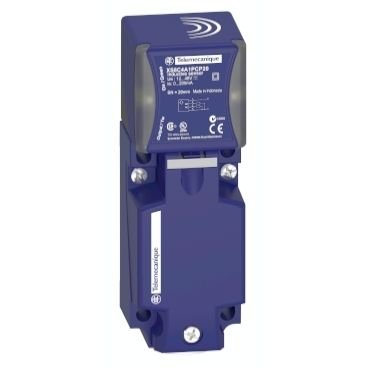

Telemecanique Sensors XS7C4A1MPG13 Kübik Format
%52
indirim
5.392,65 TL
2.588,47 TL
KDV Dahil
931,42 TL den başlayan taksitlerle!
Range of product
Telemecanique Inductive proximity sensors XS
Series name
General purpose
Sensor type
Inductive proximity sensor
Device application
-
Sensor name
XS7
Sensor design
Form 40 x 40 x 117
Size
117 mm
Body type
Fixed
Detector flush mounting acceptance
Flush mountable
Material
Plastic
Enclosure material
PBT
Type of output signal
Discrete
Wiring technique
2-wire
[Sn] nominal sensing distance
15 mm
Discrete output function
1 NO or 1 NC programmable
Output circuit type
AC/DC
Electrical connection
Screw-clamp terminals, 4 x 1.5 mm²
[Us] rated supply voltage
24...240 V AC 50/60 Hz
24...240 V DC
24...240 V DC
Switching capacity in mA
5...200 mA DC
5...300 mA AC
5...300 mA AC
IP degree of protection
IP67 conforming to IEC 60529
IP65 conforming to IEC 60529
IP69K conforming to DIN 40050
IP65 conforming to IEC 60529
IP69K conforming to DIN 40050
