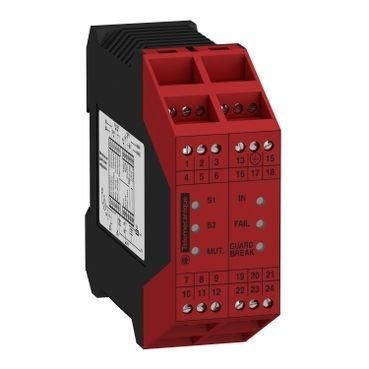

Telemecanique Sensors XPSLCMUT1160 Muting Modul
%50
indirim
28.479,25 TL
14.239,63 TL
KDV Dahil
5.123,89 TL den başlayan taksitlerle!
Range of product
Telemecanique Safety light curtains XUSL
Product or component type
Preventa safety module
Safety module name
XPSLCM
Safety module application
For the muting function of type 2 and type 4 safety light curtains monitored
Function of module
Muting
Safety level
Can reach PL = e with the appropriate control system and correctly wired conforming to EN/ISO 13849-1
Can reach category 4 with the appropriate control system and correctly wired conforming to EN/ISO 13849-1
Can reach SILCL 3 with the appropriate control system and correctly wired conforming to EN/IEC 62061
Can reach category 4 with the appropriate control system and correctly wired conforming to EN/ISO 13849-1
Can reach SILCL 3 with the appropriate control system and correctly wired conforming to EN/IEC 62061
Safety reliability data
PFHd = 6.42E-9...5.03E-8 1/h conforming to EN/IEC 62061
B10d = 800000 conforming to EN/ISO 13849-1
MTTFd = 26...100 years conforming to EN/ISO 13849-1
DC = 96.2...98.9 % conforming to EN/ISO 13849-1
B10d = 800000 conforming to EN/ISO 13849-1
MTTFd = 26...100 years conforming to EN/ISO 13849-1
DC = 96.2...98.9 % conforming to EN/ISO 13849-1
Synchronisation time between inputs
4 s of muting
Connections - terminals
Screw terminal
Output type
2 relay, 2 A at 24 V
Number of additional circuits
1 solid state PNP (NO), 100 mA for status on 24 V
1 solid state PNP (NO), 20.8…208 mA for lamp on 24 V
1 solid state PNP (NO), 20.8…208 mA for lamp on 24 V
[Us] rated supply voltage
24 V DC - 20...20 %
